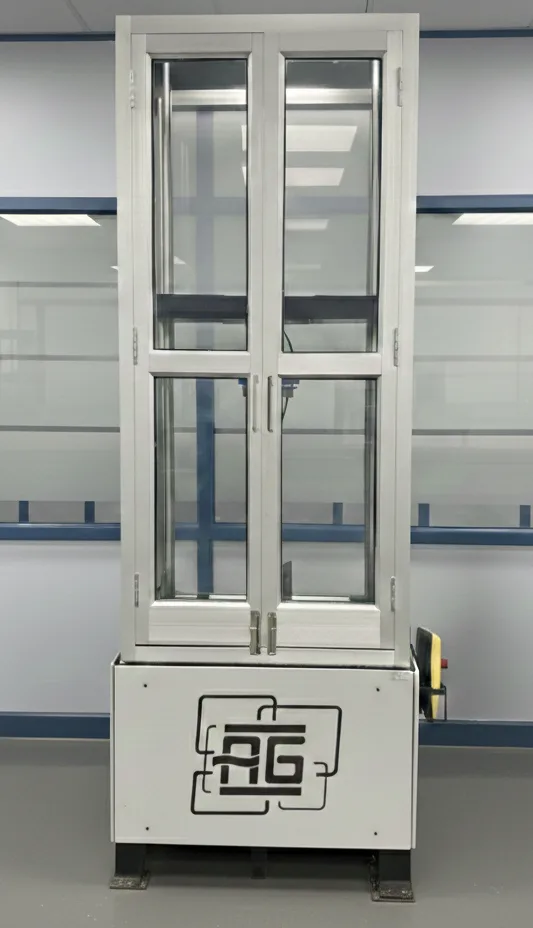

100 kN · 200 kN · 500 kN · 1000 kNFour-model UTM range for tensile, compression, flexure, and shear testing of metals, plastics, concrete, rubber, composites, and more. The 100 kN model is Servo Motorized; 200–1000 kN models are Servo Hydraulic. Compliant with ASTM, ISO, and BIS standards.
DTM Series
AGMPL's DTM Series UTMs cover 100 kN to 1,000 kN across four models. The 100 kN model uses a precision servo motorized electric drive; the 200–1000 kN models use a servo hydraulic double-acting cylinder for heavy-duty loading. National Instruments' high-speed 16-bit data acquisition captures every event in real time — from slow creep to fast brittle fracture — while the sTestV8.3 software automates the entire test cycle and produces standards-compliant reports in seconds.
Every machine is supplied with NABL-traceable calibration certificates and is designed to meet ISO 7500-1 Class 1 accuracy, making it immediately deployable in accredited test laboratories, production QC lines, and university research facilities.
A Universal Testing Machine (UTM) applies precisely controlled tensile, compressive, shear, or bending forces to a material specimen and measures its mechanical response — strength, stiffness, ductility, and failure behaviour. It is the single most versatile instrument in any material testing laboratory.
Applicable Standards
Get a Quote
Pricing depends on capacity, fixture selection, and site requirements. Contact us for a detailed technical proposal — we respond within 24 hours.
Request a Quotation
Model Range
100 kN model uses a Servo Motorized drive; 200–1000 kN models use Servo Hydraulic. All share the same NI DAQ system, sTestV8.3 software, and safety package.
| Parameter | UTM — 100 kN | UTM — 200 kN | UTM — 500 kN | UTM — 1000 kN | Configure |
|---|---|---|---|---|---|
| Model | DTM.43 | DTM.83 | DTM.153 | DTM.303 | — |
| Max Capacity | 100 kN (10,000 kgf) | 200 kN (20,000 kgf) | 500 kN (50,000 kgf) | 1,000 kN (1,00,000 kgf) | |
| Drive System | Servo Motorized | Servo Hydraulic | Servo Hydraulic | Servo Hydraulic | — |
| Frame Rating | 20 Tons (20,000 kgf) | 40 Tons (40,000 kgf) | 100 Tons (1,00,000 kgf) | 200 Tons (2,00,000 kgf) | — |
| Frame Type | Circular, dual-column | Circular, dual-column | 4-column heavy frame | 4-column heavy duty | — |
| Total Travel | 1,000 mm (0.01 mm res.) | 1,000 mm (0.01 mm res.) | 1,000 mm (0.01 mm res.) | 1,000 mm (0.01 mm res.) | |
| Column-to-Column | 400 mm | 500 mm | 600 mm | 700 mm | — |
| Test Velocity | 5 – 100 mm/min | 5 – 100 mm/min | 5 – 100 mm/min | 5 – 50 mm/min | |
| Load Cell Resolution | 0.1 kN (10 kgf) | 0.2 kN (20 kgf) | 0.5 kN (50 kgf) | 1 kN (100 kgf) | |
| Max Specimen Size | Max 1,000 mm × ∅200 mm | Max 1,000 mm × ∅250 mm | Max 1,000 mm × ∅300 mm | Max 1,200 mm × ∅400 mm | |
| No. of Stations | 1 | 1 | 1 / 2 | 1 / 2 | — |
Technical Specifications
Manual Wedge Grips (MWE Series)
| Model | Force | Thickness | Width |
|---|---|---|---|
| MWE-50-45-60 | 50 kN | 0–20 mm | 45 mm |
| MWE-20-45-60 | 20 kN | 0–20 mm | 45 mm |
| MWE-10-45-60 | 10 kN | 0–12 mm | 45 mm |
| MWE-5-25-40 | 5 kN | 0–8 mm | 25 mm |
20 mm dia shank coupling. Jaw types: diamond serrated (flat), V-groove (round), wave (Kevlar), U-groove (wire rope).
Bollard Grips (BG Series) — Ropes & Ribbons
| Model | Force | Max Dia |
|---|---|---|
| BG-01 | 1 kN | ≤ 5 mm |
| BG-05 | 5 kN | ≤ 8 mm |
| BG-20 | 20 kN | ≤ 10 mm |
| BG-50 | 50 kN | ≤ 12 mm |
Specialty Grips
LVDT-Based Clip-On (DEXEM Series)
| Model | Gauge Length | Range |
|---|---|---|
| DEXEM-04-25 | 25 mm fixed | 4 mm — Single LVDT |
| DEXEM-09-50 | 50 mm fixed | 9 mm — Single LVDT |
| DEXEM-20-100 | 100 mm fixed | 20 mm — Single LVDT |
| DEXEM-04-120 | 30/50/100/120 mm | 4 mm — Dual LVDT |
LVDT-based extensometers provide analogue output proportional to elongation for computerised strain measurement. Resolution 0.01 mm.
Mechanical (Dual Dial Gauge)
Ultra-Long Range (ULREX-800-15-E)
Compression Plates
Dumbbell Specimen Cutter
Tension Spring Fixture
Signal Interface Module (Extensometers)
Built-In
All modes are pre-configured in sTestV8.3 — select, set parameters, and test. No programming required.
Constant crosshead speed, LVDT position measurement
Ramp load at defined rate, ideal for stress-controlled tests
Hold final length; measure load relaxation
Auto-stop on load drop; captures UTS and elongation
Constant crosshead travel; height-based termination
Ramp load at defined rate; records yield and failure
Determine free height or compressed solid length
3-point or 4-point bend fixture; measures modulus, MOR
Capabilities
The 100 kN model uses a precision servo motorized electric drive for smooth, quiet, and energy-efficient load application — ideal for light-to-medium material testing in lab environments.
Higher-capacity models use a high-speed servo hydraulic double-acting cylinder for powerful, precise load application across heavy force ranges — ideal for metals, concrete, composites, and structural elements.
National Instruments USA high-speed 16-bit DAQ system captures force, displacement, and temperature at 10,000 samples/second — no data loss even on fast fracture specimens.
Purpose-built Windows 10 test software with live X–Y graphing (load vs. displacement, stress vs. strain), force/displacement control modes, auto load-cell detection, and one-click Excel export.
Tension, compression, shear, and bending — all in one system. Switch between test modes by changing fixtures. Control by force, displacement, or height.
Every machine is supplied with NABL-traceable calibration certificates, meeting ISO 7500-1 Class 1 requirements — ready for use in accredited test laboratories.
Four-side 5 mm Perspex safety shield with door interlocks protects the operator from high-velocity specimen fragments at fracture. Tower lamp and limit switches provide additional protection.
Industries Served
The UTM is the workhorse of every material testing lab. Virtually any solid material that can be formed into a standardised specimen can be tested.
Compressive strength of concrete cubes & cylinders, brick, tile, and stone specimens.
Tensile yield strength, UTS, elongation, and reduction of area of steel, aluminium, and copper specimens.
Tensile modulus, break strength, and elongation of injection-moulded plastic test bars and films.
Tensile strength, elongation, and modulus of vulcanised rubber dumbbell specimens.
Tensile properties of carbon fibre, fiberglass, geotextile, and woven composite panels.
Structural element tensile certification, parachute cord break strength, and fastener qualification.
Customisation
LVDT-based clip-on extensometers (DEXEM series) for strain and Young's Modulus measurement per ASTM E8. Gauge lengths 25–120 mm, ranges 4–20 mm. Ultra-long range ULREX-800-15-E (800 mm) available for rubber and polymer specimens.
Environmental enclosure for testing at −40°C to +250°C — captures temperature-dependent material behaviour.
Supplementary low-capacity load cells (5 kN, 10 kN) for testing soft materials with higher resolution.
Manual wedge grips (5–50 kN), bollard grips for ropes, wide grips (200 mm, ASTM D4595-09), webbing grips (ASTM D6775), eccentric roller grips for foils and rubber, compression plates (50–300 mm dia), and dumbbell specimen cutters (ASTM D638, D412).
Dual-station setup (500 & 1000 kN models) to run two independent specimens simultaneously for higher throughput.
Engineered foundation and civil installation drawings by AGMPL's structural team for your lab layout.
Proven Components
Every DTM Series UTM is built from globally recognised components — no generic substitutions.
Machine Frame
MS High-Strength Steel
TATA / VISA / JSW / Bhushan
Load Cell
Precision Force Transducer
Vishay Sensortronics UK · Interface · HBM
Machine Controller
High-Speed 16-bit DAQ
National Instruments USA
Sensor Amplifiers
Custom Instrumentation
AGMPL
Control PC
Intel i5 · 16 GB RAM · 1 TB HDD
HP / Dell / Lenovo
Switchgear
Industrial Grade
L&T · Siemens · Schneider
Cable Ducts & Guides
Industrial Cable Management
Lapp Kabel
Control Desk
Custom Integrated Panel
AGMPL (Roorkee)
Also in Springs
Computerized Spring Testing Machines (1~100KN)
View product →
Leaf Spring Testing Systems
View product →
Manual Spring Testers
View product →
Spring Fatigue Testing Machines
View product →
Tensile Testing Machines
View product →
Torsion Spring Testing System
View product →
After Sales
On-site NABL-traceable calibration per ISO 7500-1 for all UTM models
Learn more →
Test method development, fixture design, and lab layout planning
Learn more →
Safe disassembly, transport, and re-commissioning of testing machines
Learn more →
Upgrade legacy UTMs with new servo controls, DAQ systems, and software
Learn more →
Annual maintenance contracts (AMC) covering all UTM components
Learn more →
Tell us your material, maximum load, and test standard — our engineers will recommend the right model, configure the grips, and send a detailed technical proposal within 24 hours.
