8 – 1440 Channels · LVDT · Strain Gauge · Thermocouple · RTD · 4–20 mAModular, expandable data acquisition and control system supporting virtually any analog transducer. Operates standalone or with PROsof / AUTOmate PC software. 8 to 1440 channels in a single system. No external signal conditioning required.

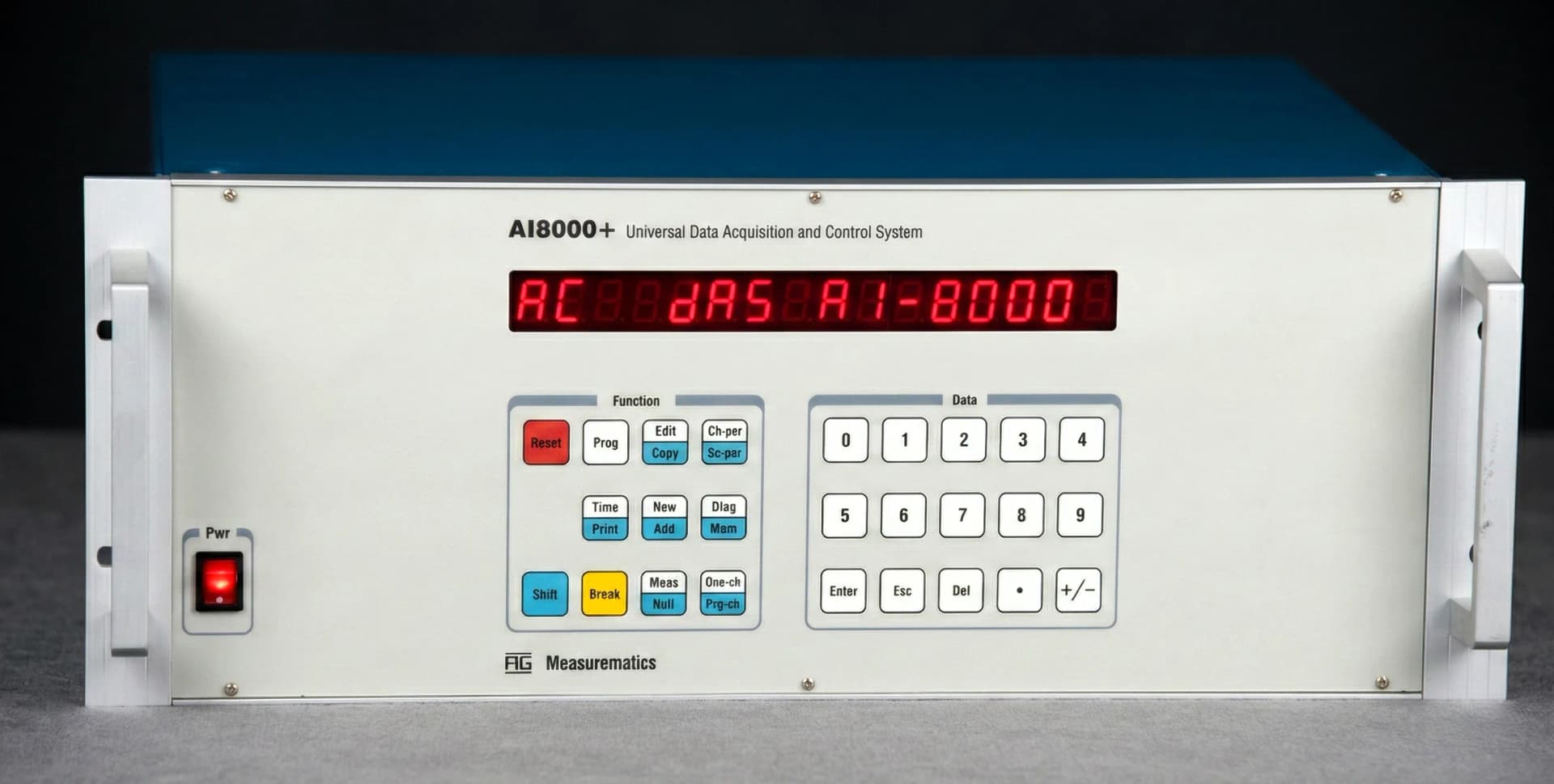

AI8000+ Series
The AI8000+ is a microprocessor-based, computer-compatible measurement and control system that accepts virtually any analog transducer directly — LVDT, load cell, strain gauge, thermocouple, RTD, and 4–20 mA signals — without external signal conditioning modules. The totally wire-free modular construction allows plug-and-play channel expansion from 8 channels up to 1440 in a single networked system.
Three base configurations address different industries: AI8000+/1 for engineering research and structural testing (strain gauge rosettes, AC LVDT), AI8000+/2 for industrial process plants (4–20 mA loops, RTD, DC LVDT), and AI8000+/3 for high-channel multi-sensor measurement. All configurations share the same accuracy class — 0.05% FSR for most input types.
Inputs: Strain gauge bridges, AC/DC LVDT, thermocouples, load cells, rosettes
Master: 48 channels · Extender: 96 ch / unit (up to 7 units)
Inputs: 4–20 mA, 0–20 mA, DC LVDT, RTD, thermocouples, ±V signals
Master: 96 channels · Extender: 192 ch / unit (up to 7 units)
Inputs: 4-arm strain gauge bridge, AC/DC LVDT, ±V signals
Master: 48 channels · Extender: 96 ch / unit (up to 7 units)
Sensor Compatibility
Direct connection to virtually any analog transducer — no external signal conditioning required.
Built-in 2V rms, 1 kHz sinusoidal excitation. Linear calibration standalone; 4th-degree polynomial with PROsof. Range ±30–300 mm. Resolution 0.01–0.1 mm.
Accepts DC LVDTs powered by external ±15V or 24V DC supply. Range ±30–300 mm. Same 0.05% FSR accuracy as AC variant.
5V DC bridge excitation. Full scale ±24,000 µε (GF=2). Gauge factor programmable to 10.000. Supports 2/3/4/5/6-wire configurations. Resolution: 1 µε.
Strain gauge-based transducers, 0.5–10 mV/V output. Resolution 0.002 mV — least count 0.1% rated capacity for sensors ≥0.4 mV/V sensitivity.
Types J (0–750°C), K (0–1250°C), T, E (0.25% accuracy), R, S, B (0.5% accuracy). Cold junction compensation built-in. Resolution: 1°C.
1 mA constant current excitation. Range –20 to +200°C. Resolution 0.1°C. Accuracy <0.5% of range. Also supports Cu53.
100 Ω input resistance. Resolution 0.001 mA. Accuracy <0.05% of range. Direct connection to process transmitters and loop-powered sensors.
Accepts ±300 mV, ±3V, and ±15V inputs. Connects any voltage-output transducer or process signal directly — no external signal conditioning required.
Performance Data
| Input Type | Measurement Range | Accuracy | Resolution |
|---|---|---|---|
| Strain Gauge | ±24,000 µε (GF=2) | ±0.05% FSR | 1 µε |
| Load Cell / Pressure | 0.5–10 mV/V transducers | 0.05% FSR | 0.002 mV/V |
| AC LVDT | ±30–300 mm | 0.05% FSR | 0.01–0.1 mm |
| DC LVDT | ±30–300 mm | 0.05% FSR | ±0.1–0.5 mm |
| Thermocouple (J, K, T, E) | J: 0–750°C · K: 0–1250°C | 0.25% | 1°C |
| Thermocouple (R, S, B) | Up to 1800°C | 0.5% | 1°C |
| RTD (PT-100, Cu53) | –20 to +200°C | <0.5% range | 0.1°C |
| 4–20 mA / 0–20 mA | Full range | <0.05% range | 0.001 mA |
| mV & V Signals | ±300 mV · ±3V · ±15V | 0.05% FSR | — |
System Expansion
Add digital I/O, frequency counting, and analogue output to any AI8000+ configuration for closed-loop control and process automation.
32 lines, opto-coupled, 3–70V DC
16 lines, opto-coupled, 150 mA @ 55V DC
4 channels, up to 7 kHz; time interval 200 µs–9999 s
8 channels, 0–5V / 0–10V / ±5V; 2.44 mV resolution
PC Software
General-Purpose Data Acquisition
Data acquisition, strain measurement, setpoint control, motor speed control, and status monitoring. Stores data with timestamps; generates reports with graphs and result tables. 4th-degree polynomial calibration for highest accuracy.
Test Rig Automation
Full test rig automation for cyclic and endurance testing. Programmable control sequences, conditional logic, test data storage, and automatic report generation. Adaptable to any AI8000+ configuration.
Locomotive & Engine Load Testing
Computerized load and performance testing for diesel locomotives and water load boxes. Adaptable to automotive diesel engine testing. Data logging, live performance curves, and compliance reporting.
Industries Served
Multi-point strain, displacement, and load monitoring on bridges, buildings, and geotechnical structures. Up to 1440 channels per system.
Continuous monitoring of temperature, pressure, flow, and level signals from transmitters via 4–20 mA loops. Setpoint control for process automation.
Multi-channel strain, load, and LVDT measurement on vehicle chassis, suspension, and body structures during road simulation and fatigue testing.
High-channel-count structural health monitoring, load testing, and endurance measurement on rolling stock, bridges, and ordnance test rigs.
Strain gauge rosette measurement on aerostructures and engine test beds. AC LVDT displacement channels for blade and actuator monitoring.
Flexible platform for teaching transducer technology, data acquisition, and signal processing. Expandable for multi-sensor experiments.
Documentation
Complete specifications, configurations, I/O modules, software, and ordering information
Tell us your input types, channel count, and application — we will specify the right AI8000+ configuration and software package.
