Zeus5000 Precision Transducer Indicator & Logger — I-33

Key Specifications

Channels1 / 2 / 4 (standard), 16 (multi)

LVDT Accuracy0.05% FSR

LVDT Resolution0.01 mm (up to ±30 mm)

Strain Gauge Accuracy±0.05% FSR

Strain Gauge Resolution1 µm/m

ADC Resolution18-bit

Data Storage16 GB removable micro SD

Display4-line × 20-char backlit LCD

EnclosureDIN panel mount, 96 × 192 mm

Power200 – 260 V AC, 50 Hz

Zeus5000 · I-33 Series

Overview

The Zeus5000 is a multichannel data recording indicator and system suitable for virtually any measurement and control application. It can be configured with up to 4 channels of analog input with 4-channel relay control, and operates in standalone or computerised mode with live data viewing and recording.

It accepts a wide range of transducer inputs — AC and DC LVDTs, strain gauge bridges, load cells, pressure sensors, thermocouples, RTDs, and process signals (4–20 mA, mV, V). The 16-channel rack-mount variant adds Ethernet connectivity and programmable logging intervals for large-scale industrial monitoring.

✓Standalone or PC-controlled operation
✓1 / 2 / 4 / 16 channel configurations
✓0.05% FSR measurement accuracy (LVDT, strain gauge)
✓16 GB removable micro SD data logging
✓4-line × 20-char backlit LCD display
✓Setpoint control with 230V / 2A relays
✓ASgraf and AUTOmate application software
✓Compact DIN panel mount or 19″ rack

Download I-33 Datasheet (PDF)

Universal Input

Acceptable Sensors

One instrument for virtually any transducer type — LVDT, strain gauge, load cell, temperature, and process signals.

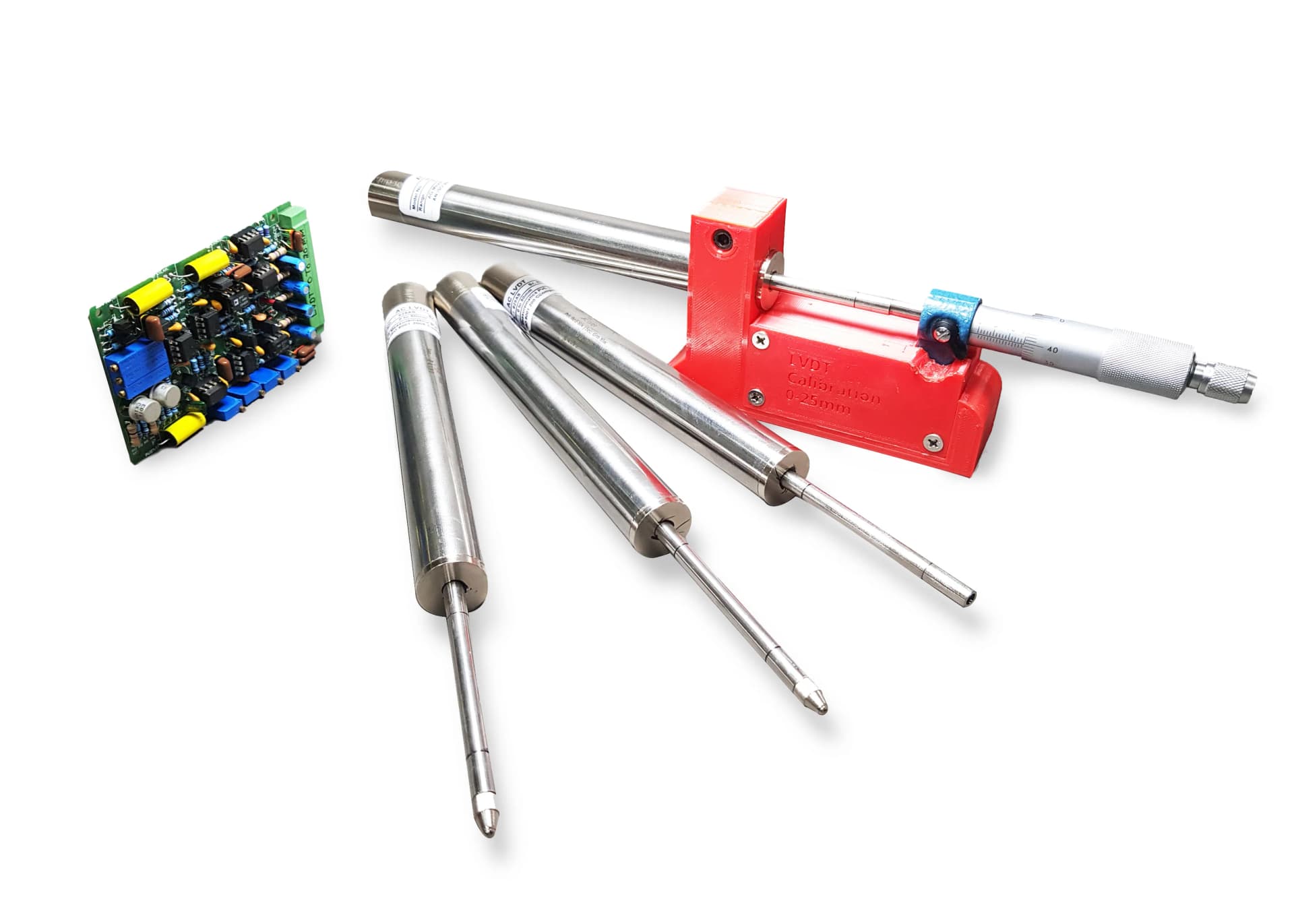

AC LVDT

0.05% FSR

Built-in 2V rms, 1 kHz sinusoidal excitation. Linear calibration in standalone mode; fourth-degree polynomial with PC software. Resolution: 0.01 mm (up to ±30 mm stroke).

DC LVDT

0.05% FSR

Accepts DC LVDTs powered by external ±15V or 24V DC supply (supplied separately). Same 0.05% FSR measurement accuracy as AC variant.

Strain Gauge Bridges

±0.05% FSR

5V DC bridge excitation. Full scale range ±24,000 µm/m with gauge factor programmable up to 10.000. Resolution: 1 µm/m. Supports 2/3/4/5/6-wire configurations.

Load Cells & Pressure Sensors

0.05% FSR

Accepts strain gauge-based transducers with 0.5 to 10 mV/V output. Resolution: 0.002 mV — allowing least count of 0.1% of rated capacity for sensors with ≥0.4 mV/V sensitivity.

Thermocouples

0.25%

Types J, K, T, E (0.25% accuracy) and R, S, B (0.5% accuracy). Cold junction compensation via built-in sensor or external channel. Resolution: 1°C.

RTD

<0.5% range

1 mA constant current excitation. Temperature range –20 to +200°C. Resolution: 0.1°C. Accuracy <0.5% of range (excluding conformity error of sensor).

4–20 mA Signals

<0.05% range

100 Ω input resistance. Resolution: 0.001 mA. Accuracy <0.05% of range. Also supports 0–20 mA configuration.

mV & V Signals

0.05% FSR

Accepts 0~±300 mV, 3V, and 15V signal inputs. Suitable for connecting any voltage-output transducer or process signal directly.

Channel Options

Configurations

Configuration	Channels	Interface	Storage	Enclosure
Single Channel	1	USB	16 GB micro SD	DIN panel mount 96 × 192 mm
Dual Channel	2	USB	16 GB micro SD	DIN panel mount 96 × 192 mm
Quad Channel	4	USB	16 GB micro SD	DIN panel mount 96 × 192 mm
Multi-Channel 16	16	Ethernet + USB	16 GB micro SD	19″ Rack Cabinet

Zeus5000 16-channel multi-channel rack configuration

The 16-channel variant mounts in a standard 19″ rack cabinet with Ethernet + USB connectivity and programmable logging intervals — ideal for large-scale industrial monitoring and multi-station test rigs.

Capabilities

Features

Push-Button Nulling

Tare any input channel with a single button press. Null values are saved in local memory and persist across power cycles — no re-zeroing needed after restart.

16 GB Data Logging

Precision time-stamped data recording to a removable micro SD card. Files are saved in standard format and can be transferred to any PC via a standard card reader.

Real-Time Clock

Built-in clock with leap year and month correction. All data files are automatically timestamped — ensuring traceability for calibration and audit records.

Engineering Unit Display

4-line × 20-character backlit dot-matrix LCD displays measured values directly in engineering units (mm, µm, kN, °C, mA, etc.) — no manual conversion required.

Setpoint Control

Two relays per channel with contact rating 230V, 2A. User-defined setpoints trigger relay outputs for alarm, process control, or test-stop functions.

Test Report Generation

Application software generates hard-copy test reports embedded with graphs and result tables. Data can be viewed in numerical and graphical formats on screen.

Software

Application Software

Two software packages — one for general-purpose data acquisition, one for automated test rig control.

ASgraf

General-purpose data acquisition software for strain measurement, setpoint control, motor speed control, and status monitoring of multiple Zeus5000 devices on a network.

AUTOmate

Application software designed specifically for test rig automation — cyclic and endurance testing, control sequencing, test data storage, and automated report generation.

Technical Data

General Specifications

Parameter	Value
Power Source	200 – 260 V AC, 50 Hz
Enclosure	DIN type, panel mounting, 96 × 192 × 250 mm
Environmental	Up to 55°C operating temperature
Terminations	Transducer / signal input: 5-pin connectors
Mains Input	Integral cable
USB Port	Type Mini B receptacle
Relay Contacts	Screw terminals, 230V / 2A per channel
ADC Resolution	18-bit
Display	4-line × 20-char, backlit, dot-matrix LCD
Data Storage	16 GB removable micro SD card
Multi-Channel (16)	Ethernet + USB, 19″ rack, programmable logging interval
