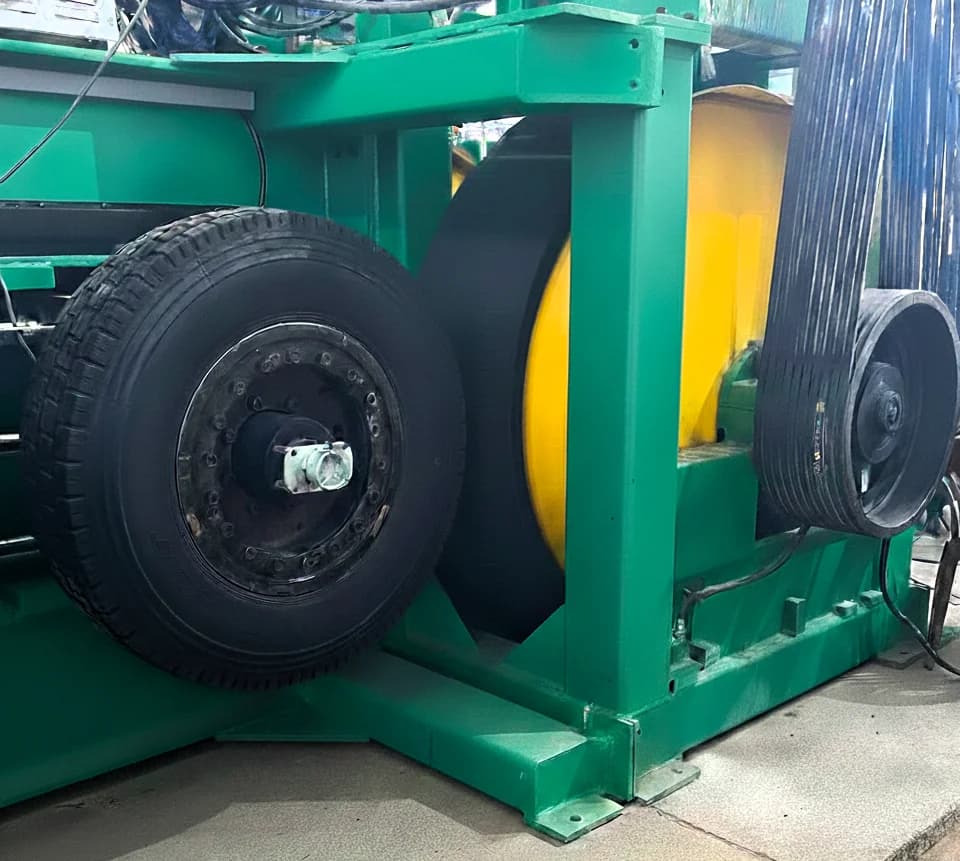

Home / Automotive / Tyre Endurance Testing Machine
1 / 2 / 4 StationsHigh-precision automated testing system for pneumatic automobile tyre endurance evaluation across PCR, TBR, and OTR tyre categories.
Applicable Standards
IMDURA Series
India's Largest Designer and Manufacturer of Standards-Compliant Tyre Testing Solutions
Endurance testing is a critical quality benchmark for tires, governed by standardized procedures like ISO 10191 and DIN 78051. These tests are essential for guaranteeing the long-term reliability and safety of every tire that hits the road.
To accommodate modern high-performance tires, testing equipment must maintain stability at speeds reaching 350 km/h and manage radial forces of 100 kN. Furthermore, the rising global demand for Truck and Bus Radial (TBR) tire testing has pushed force requirements even higher, often reaching 100 kN.
Specifications
| Parameter | PCR, LTR, Motorcycle | TBR |
|---|---|---|
| Road Wheel | ||
| Drum Diameter | 1707 mm (±0.1 mm run-out) | 1707 mm (±0.1 mm run-out) |
| Drum Width | 400 / 500 mm | 500 / 600 mm |
| Max Rotating Speed | 350 km/h | 250 km/h |
| Tyre Size | ||
| Maximum O.D. | 1,000 mm | 1,700 mm |
| Minimum O.D. | 450 mm | 700 mm |
| Tyre Load | ||
| Maximum Load | 5,000 kgf | 10,000 kgf |
| Load Accuracy | ±0.05% of F.S. | ±0.05% of F.S. |
| Configuration | ||
| No. of Stations | 1 / 2 / 4 | 1 / 2 / 4 |
| Force per Station | 2,000 – 5,000 kgf | 5,000 – 10,000 kgf |
| Tyre Pressure | ||
| Max Inflation Pressure | 500 kPa | 1200 kPa |
| Pressure Accuracy | ±1.4 kPa | ±1.4 kPa |
Automated tyre inflation system maintains target pressure continuously throughout the endurance run.
Non-contact IR sensors monitor tyre surface temperature in real time across multiple measurement points.
Laser-based system measures tyre dimensional growth under load without contact, ensuring accurate data.
•Mechanical Containment
•Control System & Software
•Hydraulic & Pneumatic
•Environmental & Thermal
Capabilities
Closed-loop servo hydraulic system for precise, repeatable load application throughout the test cycle.
Purpose-built PC-based test control and data logging software with automated test sequencing.
Available in single, dual, or four-station configurations to maximise lab throughput.
Multipoint infrared temperature measurement captures thermal data across the tyre contact zone.
Optional laser-based system for non-contact measurement of tyre dimensional growth under load.
safety cage provides a robust physical barrier that shields operators from high-speed rotating componentsUSB 2.0 connectivity for fast and reliable test data export and archiving.
Product Range
Customisation
Bolt-on obstacles (cleats) for the road wheel to test the tyre's impact resistance and dynamic stiffness.
Engineered foundation design and civil drawings for site installation.
Climate-controlled enclosure for testing at defined ambient temperature conditions.
Web-based dashboard for real-time remote access to test status and data.
