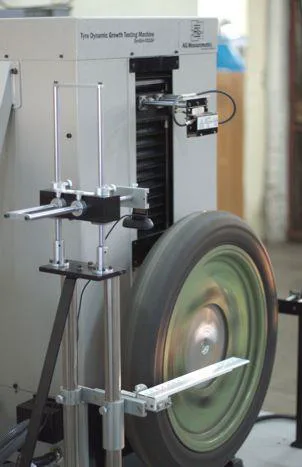

Home / Automotive / Tyres / Tyre Dynamic Growth Testing Machine
2W / 3WMeasures maximum tyre growth due to centrifugal force at maximum permissible speed, in compliance with UN ECE Regulation No. 75 and IS:15627, for 2-wheeler and 3-wheeler applications.
Applicable Standards
Calibration Wheel * (Optional)
DynGro Series
India's Largest Designer and Manufacturer of Standards-Compliant Tyre Testing Solutions
The DynGro Series consists of purpose-built systems designed to measure the maximum centrifugal expansion of a tire when rotated at its peak rated speed. These machines are engineered to comply with the stringent requirements of IS 15627 (Clause 4.3.1) for 2 and 3-wheelers, as well as UN/ECE Regulation No. 75, which governs the approval of pneumatic tires for motorcycles and mopeds.
Available in Standard and Heavy-Duty variants, the DynGro series utilizes high-precision laser sensors to capture real-time dimensional changes across 2-wheeler, 3-wheeler, and 4-wheeler tire categories. Every unit features a fully automated, PC-based control system with manual overrides and an integrated high-speed camera to provide frame-by-frame visual documentation of tire behavior under extreme rotational stress.
Specifications
| Parameter | DynGro-2LS (Standard) | DynGro-4WS (Heavy Duty) |
|---|---|---|
| Capacity | ||
| Speed Range | 0 – 300 km/h | 0 – 350 km/h |
| Power Supply | 10 HP, 3φ 415V AC, 50 Hz | 15 HP, 3φ 415V AC, 50 Hz |
| Wheel Weight | 60 Kg (Tyre+Rim) | 80 Kg (Tyre+Rim) |
| Tyre Size | ||
| Rim Diameter | 8″ – 20″ | 8″ – 24″ |
| Min Tyre O.D. | 350 mm | 350 mm |
| Max Tyre O.D. | 650 mm | 1000 mm |
| Min Tyre Width | 50 mm | 50 mm |
| Max Tyre Width | 250 mm | 300 mm |
| Measurement | ||
| Diameter Sensor | High-accuracy laser (±0.5% FSR) | High-accuracy laser (±0.5% FSR) |
| Camera | 5 MP high-speed | 5 MP high-speed |
| Profile | Tread | Tread & Side Walls |
| Other | ||
| Suitable for | Motorcycle Tyres | Motorcycle / LTR Tyres |
DynGro uses high-precision laser sensors to measure tyre diameter growth at speed — no surface contact, minimal interference.
Automatic Inline Air filling / Monitoring
Fitted as standard on both models, the high-speed camera captures tyre behaviour during the test run for visual analysis and reporting.
•Mechanical Containment
•Control System & Software
•Pneumatic
•Environmental & Thermal
Capabilities
PC-controlled automatic test execution with no manual intervention required.
High-accuracy laser sensors measure diameter growth without touching the tyre surface.
Captures tyre behaviour at speed for visual inspection and analysis of growth.
Meets international regulation requirements for 2W / 3W tyre dynamic growth testing.
Supports both manual control panel operation and full PC-automated test sequences.
Suitable for standards from China, Vietnam, Kenya, France, Brazil, and the USA.
Product Range
Customisation
Optional laser channel added to measure tyre width growth simultaneously during the test run.
Automated inflation monitoring and control maintains target pressure throughout the test.
Engineered foundation design and civil drawings for safe site installation.
Web-based dashboard for real-time remote access to test status and live data.
