Tyre Testing Machines

India's largest range of standards-compliant tyre testing systems — from endurance drums running at 350 km/h to contact patch imaging. Every machine built, tested, and supported in India. Also known as tire testing machines in North American and international markets.

Full Product Range

All Tyre Testing Machines

Click any product to view full specifications, model range, standards coverage, and enquiry details.

IMDURA Series · PCR · TBR · OTR · 1 / 2 / 4 Stations

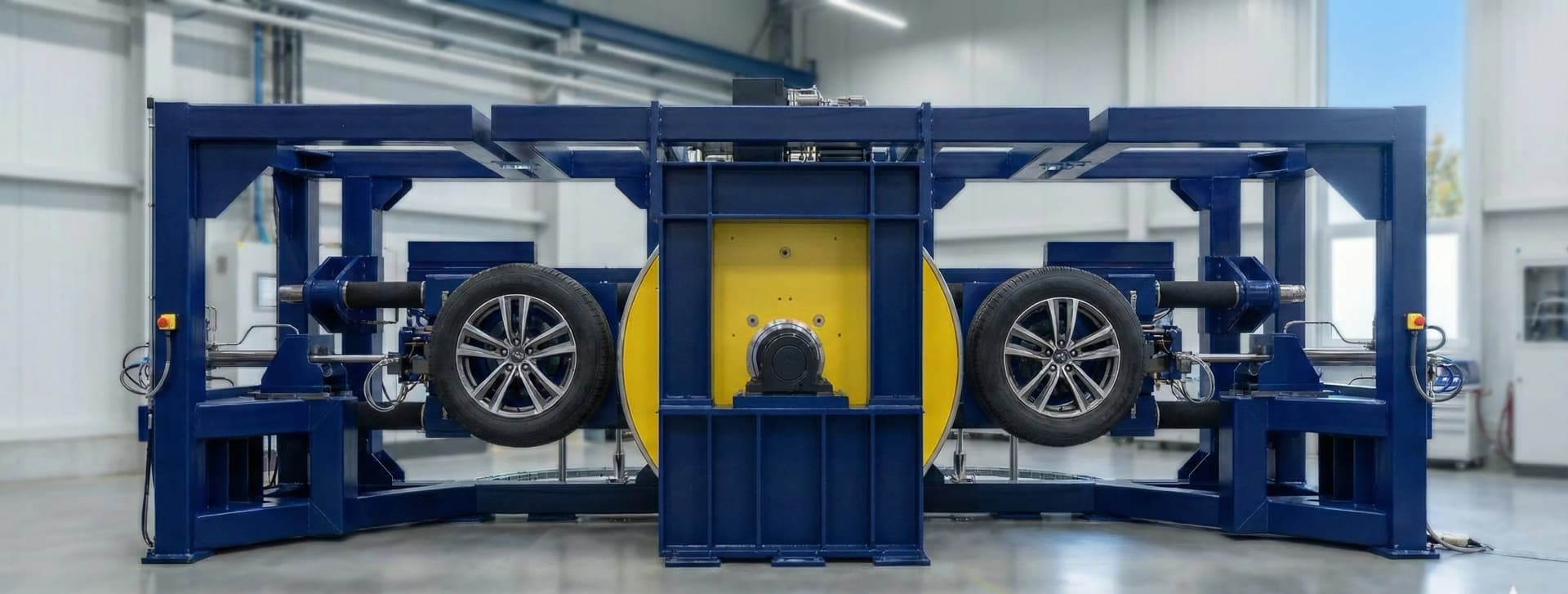

Tyre Load / Speed Endurance Testing Machine

High-precision automated system for pneumatic tyre endurance evaluation per ISO 10191, UN ECE R30, UN R54, and FMVSS 139. Servo hydraulic loading with multi-station configuration for PCR, TBR, and OTR tyres at speeds up to 350 km/h.

✓Drum diameter 1707 mm, ±0.1 mm run-out
✓Load up to 10,000 kgf (TBR) / 5,000 kgf (PCR)
✓Speed up to 350 km/h (PCR) / 250 km/h (TBR)
✓Tireon PC-based automated test software

View full specifications →

DynGro Series · 2W / 3W · UN ECE R75 / IS:15627

Tyre Dynamic Growth Testing Machine

Measures maximum tyre growth due to centrifugal force at rated speed for 2-wheeler and 3-wheeler tyres. Non-contact laser diameter measurement and integrated high-speed camera, compliant with UN ECE R75 and IS:15627.

✓High-precision laser growth measurement
✓5 MP high-speed camera, standard
✓Speeds up to 350 km/h
✓Standard & heavy-duty models (DynGro-2LS / 4WS)

View full specifications →

PCR · TBR · Motorcycle

Tyre Rolling Resistance Testing Machine

Measures the energy lost as heat when a tyre rolls under load, directly affecting vehicle fuel efficiency. Compliant with ISO 28580 and SAE J2452. Precision force measurement with temperature-controlled test environment.

✓ISO 28580 / SAE J2452 compliant
✓Precision drum force measurement
✓Covers PCR, TBR, and motorcycle tyres
✓PC-automated test sequencing

View full specifications →

IMDURA TPBU60 · PCR · TBR · Motorcycle

Tyre Plunger / Bead Unseating Testing Machine

Evaluates tyre structural integrity under localised impact (plunger test) and bead unseating resistance per FMVSS 109, ECE R30, and IS standards. Servo-controlled loading with precise force-displacement recording.

✓Plunger energy & bead unseating force
✓FMVSS 109 / ECE R30 / IS compliant
✓Servo-controlled load application
✓Automatic force-displacement reporting

View full specifications →

Radial · Lateral · Torsional

Tyre Stiffness Testing Machine

Characterises tyre spring rates in radial, lateral, and torsional directions under static and quasi-static loading. Essential input data for vehicle dynamics simulation and ride/handling development.

✓Radial, lateral & torsional stiffness
✓Static & quasi-static loading modes
✓High-accuracy load and displacement
✓Data export for vehicle simulation

View full specifications →

Built to Specification · Any Tyre Type or Standard

Custom Tyre Testing Machine

AGMPL engineers bespoke tyre testing solutions for non-standard requirements — unusual tyre sizes, combined load conditions, special standards, or integration with existing lab infrastructure. Full turnkey supply and commissioning.

✓Any tyre category or test standard
✓Combined multi-axis loading
✓Integration with existing rigs
✓Turnkey supply & commissioning

View full specifications →

Why Choose Us

Why AGMPL for Tyre Testing?

India's Largest Manufacturer

AGMPL is India's largest designer and manufacturer of standards-compliant tyre testing solutions, supplying to every major tyre maker and test lab in the country.
