Home / Civil Engineering / Servo Hydraulic Actuator System

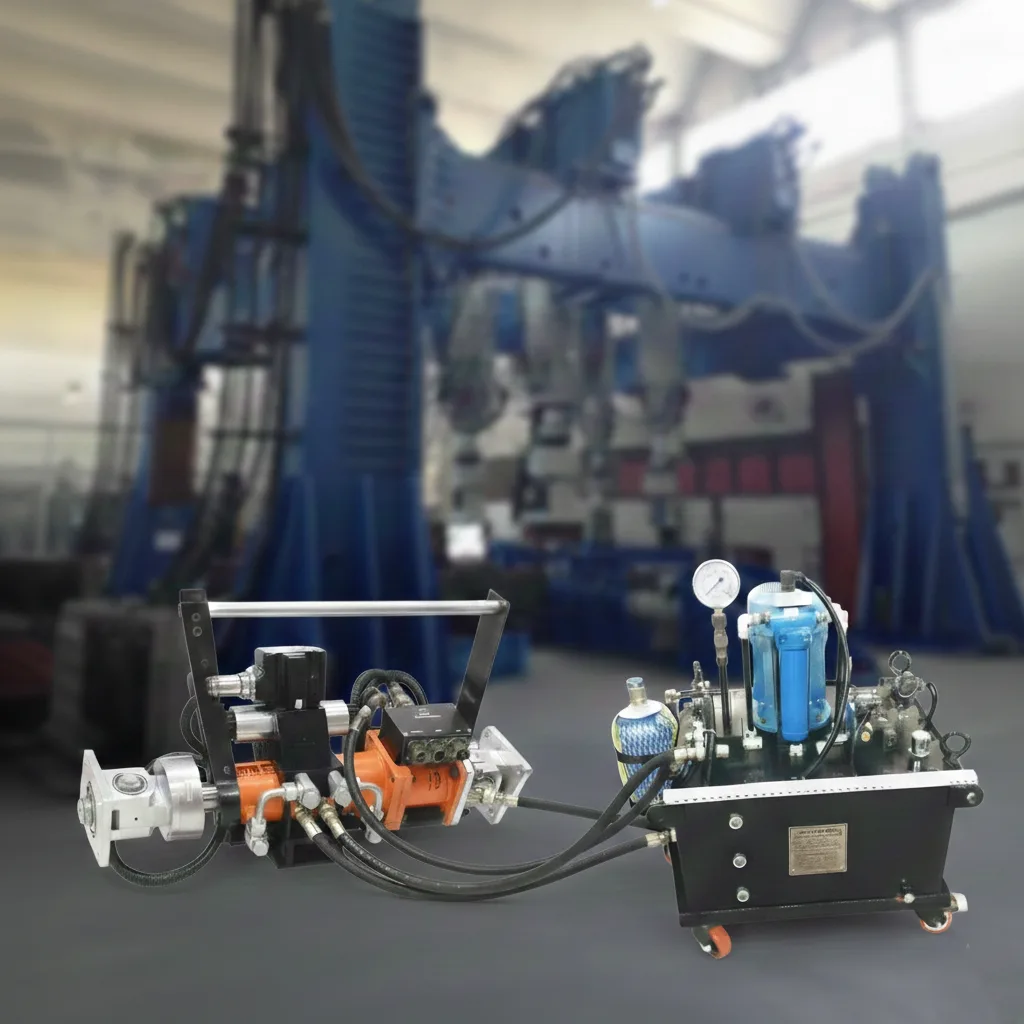

SHA Series · 14 Standard Models · 20 kN – 250 kNComputerised servo hydraulic actuators for accurate force and position control in structural testing under both quasi-static and dynamic conditions. 14 standard models from SHA-20-50 to SHA-250-200 — available with 50, 100, and 200 mm stroke options.
SHA Series · M-67
AG Measurematics offers a range of computerised servo hydraulic actuators with load cells and LVDTs, a hydraulic power unit, servo valve for cylinder control, signal conditioners for transducers, a computerised controller, and application software — delivered as a complete, ready-to-test system.
The SHA series provides accurate control of position or force for structural testing under both quasi-static and dynamic conditions. Each unit is pre-fitted with a world-class imported servo valve, a force-rated load cell, and a full-stroke LVDT — calibrated and integrated before dispatch.
A servo hydraulic actuator is a hydraulic cylinder governed by a high-speed servo valve and a real-time feedback controller. The controller compares the measured output (force or displacement) with the target command and adjusts the servo valve opening — hundreds of times per second — to eliminate the error instantly. This gives the brute force of hydraulics with electronic-grade precision.
Applicable Standards
Get a Quote
Select your force class and stroke, or describe your test requirement — we'll recommend the right model and propose a complete system.
Request a Technical Proposal
Complete System Includes
Hydraulic Cylinder
Actuator of specified stroke — fatigue-rated bore and piston rod for long-term cyclic operation
Hydraulic Power Unit
Floor-mounted HPU delivering oil at the required pump discharge rate for maximum test velocity. Incorporates oil tank, pump, manifold, pressure gauge, pressure switches, and unloader valve
Servo Valve
World-class imported servo valve fitted directly on the actuator for precise, high-bandwidth flow control
Load Cell
Rated to actuator maximum force capacity; factory-fitted on the actuator and supplied with calibration certificate
LVDT Displacement Sensor
Full-stroke range LVDT factory-fitted on the actuator for precise position feedback and measurement
Digital Actuator Controller
Modular table-top cabinet: built-in signal conditioners for load cell and LVDT, servo valve driver, DAQ for PC interface, USB connection to PC
Desktop Computer & Peripherals
Desktop computer with monitor, laser printer, and UPS — pre-loaded with application software
Application Software
Computerised setup, operation, data storage, on-line and off-line graph plotting, and test report generation in standard or custom formats
Note: Fixing accessories such as swivel-end brackets are quoted separately if required.
14 Standard Models
Choose by force capacity and stroke. Custom force ratings and strokes available on request.
| Force Capacity | 50 mm Stroke | 100 mm Stroke | 200 mm Stroke |
|---|---|---|---|
| 20 kN2.25 Ton | SHA-20-50 | SHA-20-100 | SHA-20-200 |
| 50 kN5.62 Ton | SHA-50-50 | SHA-50-100 | SHA-50-200 |
| 100 kN11.24 Ton | SHA-100-50 | SHA-100-100 | SHA-100-200 |
| 150 kN16.86 Ton | SHA-150-50 | SHA-150-100 | SHA-150-200 |
| 250 kN28.1 Ton | — | SHA-250-100 | SHA-250-200 |
Common Specifications — All Models
| Force Range | 20 kN — 250 kN (10 kN = 1.124 ton) |
| Available Strokes | 50 mm · 100 mm · 200 mm |
| Max Actuator Velocity | 100 mm/sec |
| Actuator Frequency | f = V / (3.14 × D) [f in Hz; V = peak-to-peak velocity in mm/s; D = peak-to-peak displacement in mm] |
| Control Mode | Force Control · Position Control (with peak limits) |
| Waveforms | Sinusoidal · Triangular · Square · Ramp with Rate |
| Force Accuracy | ± 1 % |
| Position Accuracy | ± 0.5 % |
| Frequency Accuracy | ± 2 % |
| Power Supply — Pump | 415 V, 3-phase |
| Power Supply — Instrumentation | 230 V, 1-phase |
Built-In Protocols
User-programmable control modes and waveforms — select, set parameters, and test.
Ramp force or displacement to failure — load-deflection curve, yield point, and ultimate capacity
Constant-amplitude sine wave loading for fatigue life, S-N curves, and crack-growth studies
Linear ramp up and down — ideal for pushover and reverse-cyclic structural tests per ATC-24
Step load and hold — captures creep, relaxation, and time-dependent deformation at constant force or displacement
User-defined loading rate (kN/s or mm/s) — meets code-specified loading rates for IS, ASTM, and IRC standards
Hardware and software peak force and displacement limits prevent specimen or fixture overload during automated cycling
Engineering Excellence
Computerised servo controller maintains force within ±1% and position within ±0.5% of the set-point throughout the test. Switch between modes mid-sequence without stopping.
Built-in sinusoidal, triangular, square, and ramp-with-rate waveform generators — covers quasi-static ramp loading through high-cycle fatigue and seismic simulation.
High-bandwidth imported servo valve fitted directly on the actuator for fast, accurate flow control — minimises phase lag and ensures faithful waveform reproduction.
Load cell rated to actuator force capacity and LVDT spanning the full stroke are factory-fitted on each actuator — calibrated and ready to test on delivery.
Modular table-top cabinet with built-in signal conditioners for load cell and LVDT, servo valve driver, DAQ for PC interface, and USB connection to the supplied desktop computer.
Floor-mounted HPU sized to deliver oil at the required pump discharge rate for maximum test velocity. Incorporates oil tank, pump, manifold, pressure gauge, pressure switches, and unloader valve.
Computerised setup, operation, and data storage. On-line and off-line graph plotting. Test report generation in pre-specified formats or custom user formats.
14 standard models across five force classes (20–250 kN) and three stroke options (50, 100, 200 mm). Swivel-end brackets and fixing accessories available as optional add-ons.
Industries & Use Cases
Flexural, shear, and ductility testing of reinforced concrete structural members under monotonic and cyclic load.
Proof load and fatigue cycling of bridge girders, decks, and connections to validate FEM models before commissioning.
Cyclic triaxial, lateral pile load, and direct shear testing under dynamic and seismic conditions.
Pseudo-dynamic and reverse-cyclic testing of joints, wall panels, and sub-assemblages per IS 1893 seismic protocols.
In-plane lateral load testing of brick, block, and AAC masonry panels for seismic vulnerability assessment.
Cyclic moment-rotation testing of bolted and welded connections, base plates, and moment frames.
Our Advantage
Actuator, HPU, servo valve, load cell, LVDT, controller, software, and optional load frame — all from AGMPL. No integration risk between multiple suppliers.
Five force classes (20–250 kN) × three stroke options (50, 100, 200 mm) cover the full range of civil and structural lab requirements out of the box.
SHA series actuators are in service at IITs, NITs, DRDO, CSIR, and state PWD structural testing laboratories across India.
Dedicated service engineers in every major city. Annual maintenance contracts available with guaranteed response time and uptime SLA.
Tell us your required force, stroke, and test type — we'll recommend the right SHA model and configure a complete system for your lab.
Call Us: +91 97 1942 1800
