Digital peak force gauge for measuring the impact force of pneumatic, electric, and manual tackers, staplers, and nail guns — with high-speed 10 kHz piezoelectric sensing and peak hold function for production QC.

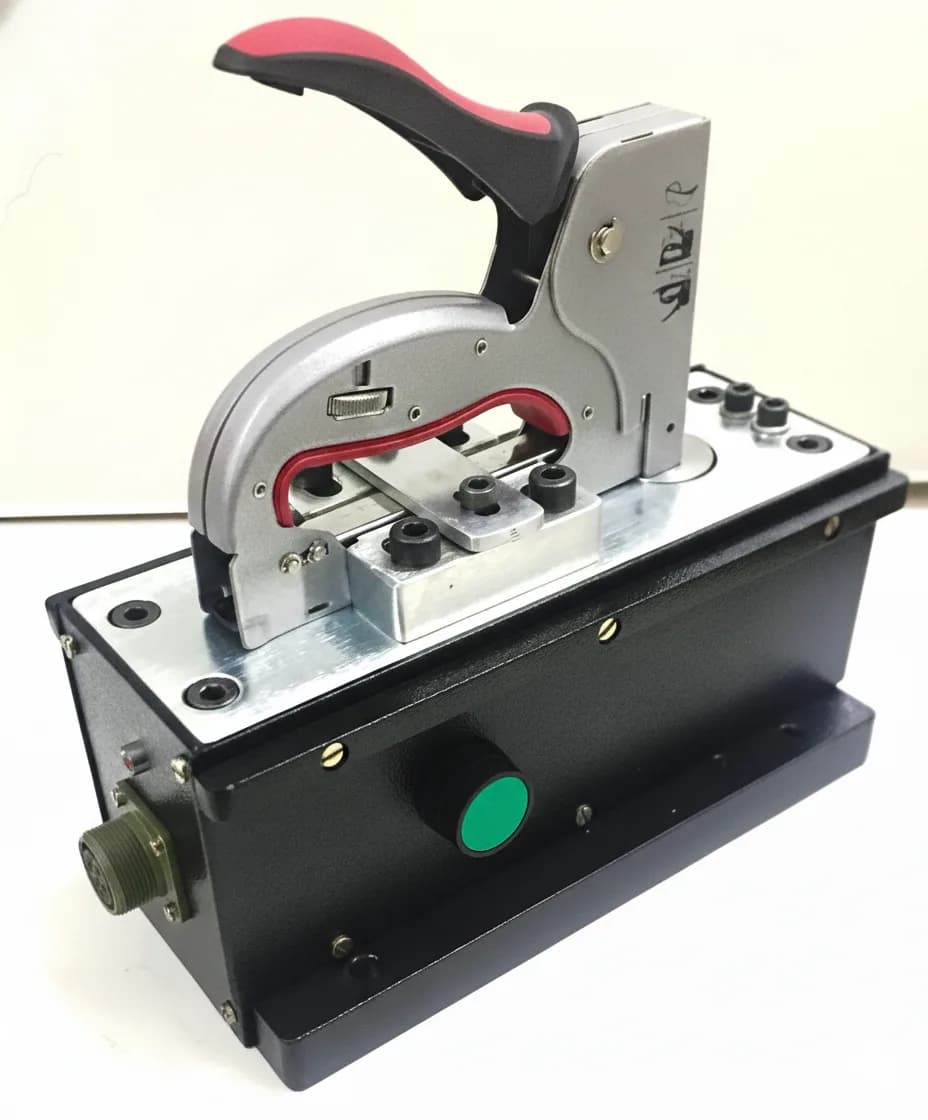

Model M-74-SIF-a
The AGMPL M-74-SIF-a is a portable digital peak force gauge designed specifically for measuring the impact force of pneumatic and manual tackers, staplers, and spring-loaded impact tools used in upholstery, furniture, packaging, and general assembly manufacturing.
Standard force gauges cannot capture tacker impact events — the strike lasts less than one millisecond and peak forces are missed entirely. The M-74-SIF-a solves this with a 10 kHz piezoelectric transducer and dedicated peak hold circuit, ensuring every peak is reliably captured and held for readout or PC logging.
Technical Data
M-74-SIF-a
Applications
| Parameter | M-74-SIF-a |
|---|---|
| Force Range | 0 – 100 kgf (0 – 980 N) |
| Resolution | 0.1 kgf |
| Accuracy | ±1% F.S. |
| Sampling Rate | 10 kHz (10,000 samples/sec) |
| Peak Hold | Yes — Auto & Manual reset |
| Display | 4-digit LCD with backlight |
| Interface | USB + RS-232 |
| Power Supply | Rechargeable Li-ion battery (8 hr) |
| Dimensions (L×W×H) | 150 × 80 × 35 mm |
| Standard Compliance | ISO 7500-1 (Force measurement instruments) |
| Calibration | NABL-traceable certificate supplied |
Specifications subject to change without notice. Custom force ranges available on request.
Why M-74-SIF-a
The peak hold function latches the maximum impact force reading from the high-speed 10 kHz sampling cycle — ensuring the true peak of each tacker strike is always captured, even for sub-millisecond impact events.
At 10,000 samples per second, the M-74-SIF-a resolves rapid impact events from both pneumatic and manual tackers with sub-millisecond resolution — far beyond what standard force gauges can achieve.
The built-in piezoelectric transducer is optimised for dynamic, high-speed impact forces — providing stable, drift-free readings for the rapid impact pulses generated by tackers, staplers, and nail guns.

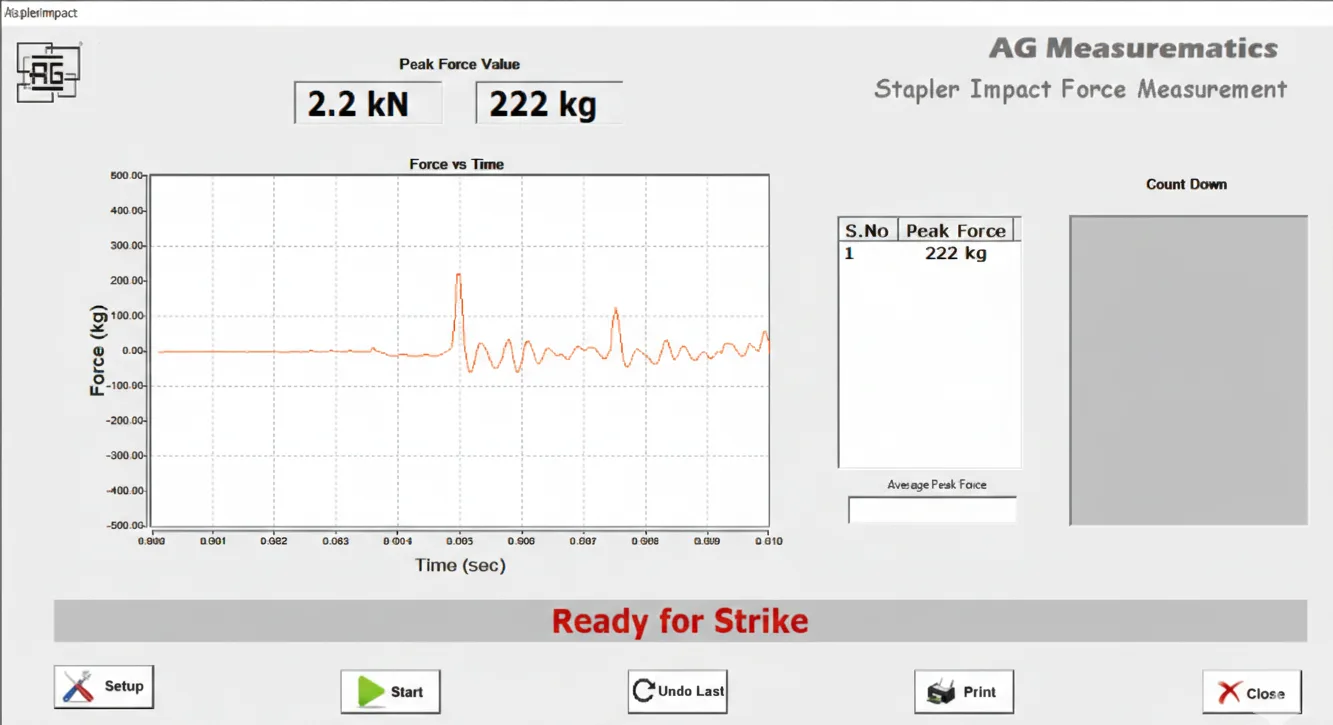

Transmit live peak readings to a PC via USB or RS-232 for automated QC data logging, SPC analysis, or integration into production-line test stations. Compatible with standard terminal software and AGMPL's companion logging application.
At 150 × 80 × 35 mm and battery-powered for up to 8 hours, the M-74-SIF-a is designed for production-floor and field use — no mains supply required. Supplied with a rugged carrying case.
Configurable peak hold reset modes allow the unit to be used in continuous production-line monitoring (auto-reset after each cycle) or manual inspection workflows (operator resets between readings).
What's Included
Trusted by Manufacturers Across Sectors
Also in Manufacturing
After Sales
On-site and in-house calibration of force gauges and testing machines
Learn more →
Application engineering, test method development, and QC system design
Learn more →
Safe disassembly, transport, and re-commissioning of testing machines
Learn more →
Repair and modernisation of force gauges and legacy test instruments
Learn more →
Annual maintenance contracts (AMC) for all testing instruments
Learn more →
Tell us your tacker type, force range requirement, and QC workflow — our engineers will confirm the right configuration and provide a quotation.
